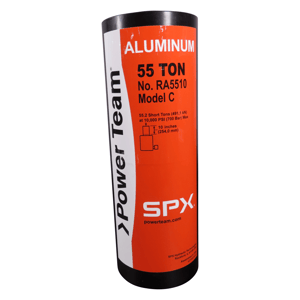

ALUMINUM CYLINDER, SINGLE ACTING, SPRING RETURN, 55 TON, 10" STROKE

Features:

  • Hard coated aluminum piston rod and cylinder bore resist wear and corrosion.
  • Grooved piston top helps keep the load from sliding on top of piston.
  • Aluminum body resists sparking in explosive environments.
  • Complies with ANSI/ASME B30.1 safety standards.
Where to buy
Add to quote
  • Overview
  • Specifications
  • Documentation
LIGHTWEIGHT DESIGN, EASY TO TRANSPORT AND POSITION.
Units:
  • Imperial
  • Metric
Specification
Imperial
Brand Power Team
Tonnage 55
Stroke 10
Return Type Spring-Return
Retracted Height 15.13 in
Cylinder Movement Single-Acting
Extended Height 25.13 in
Weight 31.8 Ibs
Cylinder Eff. Area 11.04
Specification 12
Metric
Brand Power Team
Tonnage 49.9
Stroke 254
Return Type Spring-Return
Retracted Height 384.3 mm
Cylinder Movement Single-Acting
Extended Height 638.3 mm
Weight 14.42 kgs
Cylinder Eff. Area 71.23

Document Image

Item part number

sort

Description

Document Type

sort

Model

Language

Repair Part Number

Document download result

cyl-55-ton-10-stroke-ra5510-102397

RA5510

CYL, 55 TON 10" STROKE

Operating Instructions

EN

Preview Asset Download Asset
cyl_55ton10_stroke_ra5510_c_cylinders_powerteam_102397

RA5510

CYL, 55 TON 10" STROKE

Operating Instructions

C

EN

Preview Asset Download Asset
cyl-55-ton-10-stroke-ra5510-100586

RA5510

CYL, 55 TON 10" STROKE

Part Sheets

C

EN

Preview Asset Download Asset

Comparable Models

Units:
Product Brand Tonnage Stroke Return Type Retracted Height Cylinder Movement Extended Height Weight Cylinder Eff. Area
RA206 (RA206) Power Team 20 6.13 Spring-Return 10.38 in Single-Acting 16.5 11.3 4.43
RA5510 Power Team 55 10 Spring-Return 15.13 in Single-Acting 25.13 31.8 11.04
RA1006 Power Team 100 6.25 Spring-Return 11.75 in Single-Acting 18 49.9 20.62
RA304 Power Team 30 4.13 Spring-Return 9.38 in Single-Acting 13.5 13.1 6.49
RA556 Power Team 55 6.13 Spring-Return 10.75 in Single-Acting 16.88 24 11.04
RA202 Power Team 20 2.13 Spring-Return 6.38 in Single-Acting 8.5 7.7 4.43
RA10010 Power Team 100 10.25 Spring-Return 15.63 in Single-Acting 25.8 67 20.62
RA204 Power Team 20 4.13 Spring-Return 8.38 in Single-Acting 12.5 9.3 4.43
RA302 Power Team 30 2.13 Spring-Return 7.38 in Single-Acting 9.5 11.1 6.49
RA552 Power Team 55 2.13 Spring-Return 6.75 in Single-Acting 8.88 16.2 11.04
RA306 Power Team 30 6.13 Spring-Return 11.38 in Single-Acting 17.5 15.1 6.49
RA1002 Power Team 100 2.13 Spring-Return 7.75 in Single-Acting 9.88 33.4 20.62
RA554 Power Team 55 4.13 Spring-Return 8.75 in Single-Acting 12.88 19.6 11.04
WeightCompliance
Product Brand Tonnage Stroke Return Type Retracted Height Cylinder Movement Extended Height Weight Cylinder Eff. Area
RA206 (RA206) Power Team 18.14 155.7 Spring-Return 263.65 mm Single-Acting 419.1 5.13 28.58
RA5510 Power Team 49.9 254 Spring-Return 384.3 mm Single-Acting 638.3 14.42 71.23
RA1006 Power Team 90.72 158.75 Spring-Return 298.45 mm Single-Acting 457.2 22.63 133.04
RA304 Power Team 27.22 104.9 Spring-Return 238.25 mm Single-Acting 342.9 5.94 41.87
RA556 Power Team 49.9 155.7 Spring-Return 273.05 mm Single-Acting 428.75 10.89 71.23
RA202 Power Team 18.14 54.1 Spring-Return 162.05 mm Single-Acting 215.9 3.49 28.58
RA10010 Power Team 90.72 260.35 Spring-Return 397 mm Single-Acting 655.32 30.39 133.04
RA204 Power Team 18.14 104.9 Spring-Return 212.85 mm Single-Acting 317.5 4.22 28.58
RA302 Power Team 27.22 54.1 Spring-Return 187.45 mm Single-Acting 241.3 5.03 41.87
RA552 Power Team 49.9 54.1 Spring-Return 171.45 mm Single-Acting 225.55 7.35 71.23
RA306 Power Team 27.22 155.7 Spring-Return 289.05 mm Single-Acting 444.5 6.85 41.87
RA1002 Power Team 90.72 54.1 Spring-Return 196.85 mm Single-Acting 250.95 15.15 133.04
RA554 Power Team 49.9 104.9 Spring-Return 222.25 mm Single-Acting 327.15 8.89 71.23

Trending Products

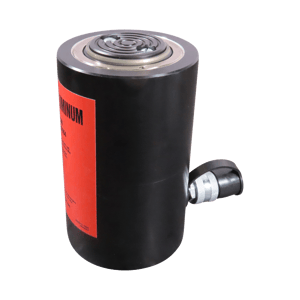

RA554

RA554

Cylinders & Jacks

RA554
See Product Details

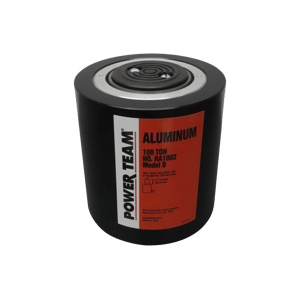

RA1002

RA1002

Cylinders & Jacks

RA1002
See Product Details

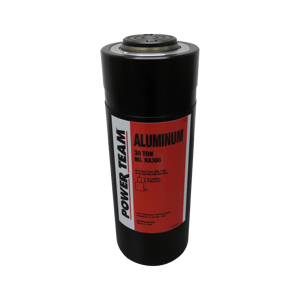

RA306

RA306

Cylinders & Jacks

RA306
See Product Details

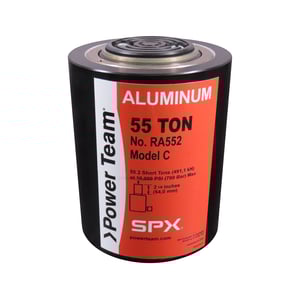

RA552
