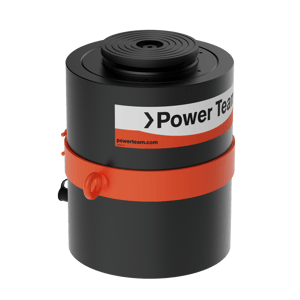

CYLINDER 12IN 150T SINGLE ACTING, LOAD RETURN, W/ SWIVEL CAP, NITRIDE

Features:

  • Single-acting, load return hydraulic cylinders, tonnages ranging from 55-200.
  • Patented swivel cap provides concentrated load centering up to 5 degrees.
  • Sealing technology provides rod lubrication to reduce friction and wear.
  • Floating piston design resists side loading conditions.
  • “Power-tech” nitro-carburization surface treatment inhibits corrosion and provides exceptional durability
  • Base mounting holes standard on all models (they are not maintained to port location).
  • One high flow 3/8” NPTF female half coupler andremovable carry strap w/ eyelets are included.
  • Complies with ANSI/ASME B30.1 safety standards.
Where to buy
Add to quote
  • Overview
  • Specifications
  • Documentation
HEAVY LIFT, GENERAL PURPOSE CYLINDER FOR TOUGH MAINTENANCE APPLICATIONS.
Units:
  • Imperial
  • Metric
Specification
Imperial
Brand Power Team
Tonnage 150
Stroke 12
Return Type Load-Return
Retracted Height 18.45 in
Cylinder Movement Single-Acting
Extended Height 30.45 in
Weight 183.1 Ibs
Specification 12
Metric
Brand Power Team
Tonnage 136.07
Stroke 304.8
Return Type Load-Return
Retracted Height 468.63 mm
Cylinder Movement Single-Acting
Extended Height 773.43 mm
Weight 83.05 kgs

Comparable Models

Units:
Product Brand Tonnage Stroke Return Type Retracted Height Cylinder Movement Extended Height Weight
RGG50012 Power Team 500 12 Load-Return 22.28 in Single-Acting 34.28 845.1
RGG3004 Power Team 300 4 Load-Return 12.74 in Single-Acting 16.74 307.1
RGG5006 Power Team 500 6 Load-Return 16.28 in Single-Acting 22.28 645.7
RGG15010 Power Team 150 10 Load-Return 16.45 in Single-Acting 26.45 164.7
RGG558 Power Team 55 8 Load-Return 13.12 in Single-Acting 21.12 61.5
RGG25013 Power Team 250 13 Load-Return 21.3 in Single-Acting 34.3 383.6
RGG6006 Power Team 600 6 Load-Return 16.75 in Single-Acting 22.75 770.2
RGG2002 Power Team 200 2 Load-Return 9.26 in Single-Acting 11.26 136.1
RGG30010 Power Team 300 10 Load-Return 18.74 in Single-Acting 28.74 428.9
RGG1502 Power Team 150 2 Load-Return 8.45 in Single-Acting 10.45 91.3
RGG50014 Power Team 500 14 Load-Return 24.28 in Single-Acting 38.28 911.6
RGG752 Power Team 75 2 Load-Return 7.44 in Single-Acting 9.44 45
RGG554 Power Team 55 4 Load-Return 9.12 in Single-Acting 13.12 43.6
RGG40014 Power Team 400 14 Load-Return 24.06 in Single-Acting 38.06 742
RGG50010 Power Team 500 10 Load-Return 20.28 in Single-Acting 30.28 778.7
RGG1506 Power Team 150 6 Load-Return 12.45 in Single-Acting 18.45 128
RGG556 Power Team 55 6 Load-Return 11.12 in Single-Acting 17.12 52.5
RGG30014 Power Team 300 14 Load-Return 22.74 in Single-Acting 36.74 510.2
RGG15012 Power Team 150 12 Load-Return 18.45 in Single-Acting 30.45 183.1
RGG5002 Power Team 500 2 Load-Return 12.28 in Single-Acting 14.28 512.7
RGG60013 Power Team 600 13 Load-Return 23.75 in Single-Acting 36.75 1051.9
RGG2508 Power Team 250 8 Load-Return 16.3 in Single-Acting 24.3 301.3
RGG2502 Power Team 250 2 Load-Return 10.3 in Single-Acting 12.3 202.4
RGG20014 Power Team 200 14 Load-Return 21.26 in Single-Acting 35.26 285.6
RGG754 Power Team 75 4 Load-Return 9.44 in Single-Acting 13.44 55.7
RGG10014 Power Team 100 14 Load-Return 19.79 in Single-Acting 33.79 140.3
RGG20012 Power Team 200 12 Load-Return 19.26 in Single-Acting 31.26 260.7
RGG10013 Power Team 100 13 Load-Return 18.79 in Single-Acting 31.79 133.6
RGG552 Power Team 55 2 Load-Return 7.12 in Single-Acting 9.12 34.6
RGG756 Power Team 75 6 Load-Return 11.44 in Single-Acting 17.44 66.4
RGG15014 Power Team 150 14 Load-Return 20.45 in Single-Acting 34.45 201.4
RGG60012 Power Team 600 12 Load-Return 22.75 in Single-Acting 34.75 1011.7
RGG1002 Power Team 100 2 Load-Return 7.79 in Single-Acting 9.79 59.2
RGG10010 Power Team 100 10 Load-Return 15.79 in Single-Acting 25.79 113.3
RGG40013 Power Team 400 13 Load-Return 23.06 in Single-Acting 36.06 714.6
RGG25012 Power Team 250 12 Load-Return 20.3 in Single-Acting 32.3 367.2
RGG2506 Power Team 250 6 Load-Return 14.3 in Single-Acting 20.3 268.3
RGG6008 Power Team 600 8 Load-Return 18.75 in Single-Acting 26.75 850.7
RGG5510 Power Team 55 10 Load-Return 15.12 in Single-Acting 25.12 70.5
RGG4002 Power Team 400 2 Load-Return 12.06 in Single-Acting 14.06 413.7
RGG5513 Power Team 55 13 Load-Return 18.12 in Single-Acting 31.12 83.9
RGG50013 Power Team 500 13 Load-Return 23.28 in Single-Acting 36.28 878.4
RGG3002 Power Team 300 2 Load-Return 10.74 in Single-Acting 12.74 266.5
RGG20010 Power Team 200 10 Load-Return 17.26 in Single-Acting 27.26 235.8
RGG25010 Power Team 250 10 Load-Return 18.3 in Single-Acting 28.3 334.2
RGG2504 Power Team 250 4 Load-Return 12.3 in Single-Acting 16.3 235.4
RGG30013 Power Team 300 13 Load-Return 21.74 in Single-Acting 34.74 489.9
RGG20013 Power Team 200 13 Load-Return 20.26 in Single-Acting 33.26 273.2
RGG60014 Power Team 600 14 Load-Return 24.75 in Single-Acting 38.75 1092.2
RGG3008 Power Team 300 8 Load-Return 16.74 in Single-Acting 24.74 388.3
RGG10012 Power Team 100 12 Load-Return 17.79 in Single-Acting 29.79 126.8
RGG5008 Power Team 500 8 Load-Return 18.28 in Single-Acting 26.28 712.2
RGG7513 Power Team 75 13 Load-Return 18.44 in Single-Acting 31.44 104
RGG4004 Power Team 400 4 Load-Return 14.06 in Single-Acting 18.06 468.4
RGG2006 Power Team 200 6 Load-Return 13.26 in Single-Acting 19.26 185.9
RGG4008 Power Team 400 8 Load-Return 18.06 in Single-Acting 26.06 577.8
RGG6004 Power Team 600 4 Load-Return 14.75 in Single-Acting 18.75 689.7
RGG7514 Power Team 75 14 Load-Return 19.44 in Single-Acting 33.44 109.3
RGG5514 Power Team 55 14 Load-Return 19.12 in Single-Acting 33.12 88.4
RGG1006 Power Team 100 6 Load-Return 11.79 in Single-Acting 17.79 86.2
RGG1004 Power Team 100 4 Load-Return 9.79 in Single-Acting 13.79 72.7
RGG5004 Power Team 500 4 Load-Return 14.28 in Single-Acting 18.28 579.2
RGG40010 Power Team 400 10 Load-Return 20.06 in Single-Acting 30.06 632.6
RGG4006 Power Team 400 6 Load-Return 16.06 in Single-Acting 22.06 523.1
RGG25014 Power Team 250 14 Load-Return 22.3 in Single-Acting 36.3 400.1
RGG7512 Power Team 75 12 Load-Return 17.44 in Single-Acting 29.44 98.6
RGG1008 Power Team 100 8 Load-Return 13.79 in Single-Acting 21.79 99.8
RGG2004 Power Team 200 4 Load-Return 11.26 in Single-Acting 15.26 161
RGG60010 Power Team 600 10 Load-Return 20.75 in Single-Acting 30.75 931.2
RGG6002 Power Team 600 2 Load-Return 12.75 in Single-Acting 14.75 609.3
RGG1504 Power Team 150 4 Load-Return 10.45 in Single-Acting 14.45 109.6
RGG30012 Power Team 300 12 Load-Return 20.74 in Single-Acting 32.74 469.5
RGG7510 Power Team 75 10 Load-Return 15.44 in Single-Acting 25.44 87.9
RGG2008 Power Team 200 8 Load-Return 15.26 in Single-Acting 23.26 210.9
RGG5512 Power Team 55 12 Load-Return 17.12 in Single-Acting 29.12 79.4
RGG1508 Power Team 150 8 Load-Return 14.45 in Single-Acting 22.45 146.4
RGG3006 Power Team 300 6 Load-Return 14.74 in Single-Acting 20.74 347.7
RGG15013 Power Team 150 13 Load-Return 19.45 in Single-Acting 32.45 192.3
RGG40012 Power Team 400 12 Load-Return 22.06 in Single-Acting 34.06 687.3
RGG758 Power Team 75 8 Load-Return 13.44 in Single-Acting 21.44 77.1
WeightCompliance
Product Brand Tonnage Stroke Return Type Retracted Height Cylinder Movement Extended Height Weight
RGG50012 Power Team 453.59 304.8 Load-Return 565.91 mm Single-Acting 870.71 383.33
RGG3004 Power Team 272.15 101.6 Load-Return 323.6 mm Single-Acting 425.2 139.3
RGG5006 Power Team 453.59 152.4 Load-Return 413.51 mm Single-Acting 565.91 292.88
RGG15010 Power Team 136.07 254 Load-Return 417.83 mm Single-Acting 671.83 74.71
RGG558 Power Team 49.9 203.2 Load-Return 333.25 mm Single-Acting 536.45 27.9
RGG25013 Power Team 226.79 330.2 Load-Return 541.02 mm Single-Acting 871.22 174
RGG6006 Power Team 544.31 152.4 Load-Return 425.45 mm Single-Acting 577.85 349.36
RGG2002 Power Team 181.43 50.8 Load-Return 235.2 mm Single-Acting 286 61.73
RGG30010 Power Team 272.15 254 Load-Return 476 mm Single-Acting 730 194.55
RGG1502 Power Team 136.07 50.8 Load-Return 214.63 mm Single-Acting 265.43 41.41
RGG50014 Power Team 453.59 355.6 Load-Return 616.71 mm Single-Acting 972.31 413.49
RGG752 Power Team 68.03 50.8 Load-Return 188.98 mm Single-Acting 239.78 20.41
RGG554 Power Team 49.9 101.6 Load-Return 231.65 mm Single-Acting 333.25 19.78
RGG40014 Power Team 362.87 355.6 Load-Return 611.12 mm Single-Acting 966.72 336.57
RGG50010 Power Team 453.59 254 Load-Return 515.11 mm Single-Acting 769.11 353.21
RGG1506 Power Team 136.07 152.4 Load-Return 316.23 mm Single-Acting 468.63 58.06
RGG556 Power Team 49.9 152.4 Load-Return 282.45 mm Single-Acting 434.85 23.81
RGG30014 Power Team 272.15 355.6 Load-Return 577.6 mm Single-Acting 933.2 231.42
RGG15012 Power Team 136.07 304.8 Load-Return 468.63 mm Single-Acting 773.43 83.05
RGG5002 Power Team 453.59 50.8 Load-Return 311.91 mm Single-Acting 362.71 232.56
RGG60013 Power Team 544.31 330.2 Load-Return 603.25 mm Single-Acting 933.45 477.13
RGG2508 Power Team 226.79 203.2 Load-Return 414.02 mm Single-Acting 617.22 136.67
RGG2502 Power Team 226.79 50.8 Load-Return 261.62 mm Single-Acting 312.42 91.81
RGG20014 Power Team 181.43 355.6 Load-Return 540 mm Single-Acting 895.6 129.55
RGG754 Power Team 68.03 101.6 Load-Return 239.78 mm Single-Acting 341.38 25.27
RGG10014 Power Team 90.72 355.6 Load-Return 502.67 mm Single-Acting 858.27 63.64
RGG20012 Power Team 181.43 304.8 Load-Return 489.2 mm Single-Acting 794 118.25
RGG10013 Power Team 90.72 330.2 Load-Return 477.27 mm Single-Acting 807.47 60.6
RGG552 Power Team 49.9 50.8 Load-Return 180.85 mm Single-Acting 231.65 15.69
RGG756 Power Team 68.03 152.4 Load-Return 290.58 mm Single-Acting 442.98 30.12
RGG15014 Power Team 136.07 355.6 Load-Return 519.43 mm Single-Acting 875.03 91.35
RGG60012 Power Team 544.31 304.8 Load-Return 577.85 mm Single-Acting 882.65 458.9
RGG1002 Power Team 90.72 50.8 Load-Return 197.87 mm Single-Acting 248.67 26.85
RGG10010 Power Team 90.72 254 Load-Return 401.07 mm Single-Acting 655.07 51.39
RGG40013 Power Team 362.87 330.2 Load-Return 585.72 mm Single-Acting 915.92 324.14
RGG25012 Power Team 226.79 304.8 Load-Return 515.62 mm Single-Acting 820.42 166.56
RGG2506 Power Team 226.79 152.4 Load-Return 363.22 mm Single-Acting 515.62 121.7
RGG6008 Power Team 544.31 203.2 Load-Return 476.25 mm Single-Acting 679.45 385.87
RGG5510 Power Team 49.9 254 Load-Return 384.05 mm Single-Acting 638.05 31.98
RGG4002 Power Team 362.87 50.8 Load-Return 306.32 mm Single-Acting 357.12 187.65
RGG5513 Power Team 49.9 330.2 Load-Return 460.25 mm Single-Acting 790.45 38.06
RGG50013 Power Team 453.59 330.2 Load-Return 591.31 mm Single-Acting 921.51 398.44
RGG3002 Power Team 272.15 50.8 Load-Return 272.8 mm Single-Acting 323.6 120.88
RGG20010 Power Team 181.43 254 Load-Return 438.4 mm Single-Acting 692.4 106.96
RGG25010 Power Team 226.79 254 Load-Return 464.82 mm Single-Acting 718.82 151.59
RGG2504 Power Team 226.79 101.6 Load-Return 312.42 mm Single-Acting 414.02 106.78
RGG30013 Power Team 272.15 330.2 Load-Return 552.2 mm Single-Acting 882.4 222.21
RGG20013 Power Team 181.43 330.2 Load-Return 514.6 mm Single-Acting 844.8 123.92
RGG60014 Power Team 544.31 355.6 Load-Return 628.65 mm Single-Acting 984.25 495.41
RGG3008 Power Team 272.15 203.2 Load-Return 425.2 mm Single-Acting 628.4 176.13
RGG10012 Power Team 90.72 304.8 Load-Return 451.87 mm Single-Acting 756.67 57.52
RGG5008 Power Team 453.59 203.2 Load-Return 464.31 mm Single-Acting 667.51 323.05
RGG7513 Power Team 68.03 330.2 Load-Return 468.38 mm Single-Acting 798.58 47.17
RGG4004 Power Team 362.87 101.6 Load-Return 357.12 mm Single-Acting 458.72 212.46
RGG2006 Power Team 181.43 152.4 Load-Return 336.8 mm Single-Acting 489.2 84.32
RGG4008 Power Team 362.87 203.2 Load-Return 458.72 mm Single-Acting 661.92 262.09
RGG6004 Power Team 544.31 101.6 Load-Return 374.65 mm Single-Acting 476.25 312.84
RGG7514 Power Team 68.03 355.6 Load-Return 493.78 mm Single-Acting 849.38 49.58
RGG5514 Power Team 49.9 355.6 Load-Return 485.65 mm Single-Acting 841.25 40.1
RGG1006 Power Team 90.72 152.4 Load-Return 299.47 mm Single-Acting 451.87 39.1
RGG1004 Power Team 90.72 101.6 Load-Return 248.67 mm Single-Acting 350.27 32.98
RGG5004 Power Team 453.59 101.6 Load-Return 362.71 mm Single-Acting 464.31 262.72
RGG40010 Power Team 362.87 254 Load-Return 509.52 mm Single-Acting 763.52 286.94
RGG4006 Power Team 362.87 152.4 Load-Return 407.92 mm Single-Acting 560.32 237.27
RGG25014 Power Team 226.79 355.6 Load-Return 566.42 mm Single-Acting 922.02 181.48
RGG7512 Power Team 68.03 304.8 Load-Return 442.98 mm Single-Acting 747.78 44.72
RGG1008 Power Team 90.72 203.2 Load-Return 350.27 mm Single-Acting 553.47 45.27
RGG2004 Power Team 181.43 101.6 Load-Return 286 mm Single-Acting 387.6 73.03
RGG60010 Power Team 544.31 254 Load-Return 527.05 mm Single-Acting 781.05 422.39
RGG6002 Power Team 544.31 50.8 Load-Return 323.85 mm Single-Acting 374.65 276.37
RGG1504 Power Team 136.07 101.6 Load-Return 265.43 mm Single-Acting 367.03 49.71
RGG30012 Power Team 272.15 304.8 Load-Return 526.8 mm Single-Acting 831.6 212.96
RGG7510 Power Team 68.03 254 Load-Return 392.18 mm Single-Acting 646.18 39.87
RGG2008 Power Team 181.43 203.2 Load-Return 387.6 mm Single-Acting 590.8 95.66
RGG5512 Power Team 49.9 304.8 Load-Return 434.85 mm Single-Acting 739.65 36.02
RGG1508 Power Team 136.07 203.2 Load-Return 367.03 mm Single-Acting 570.23 66.41
RGG3006 Power Team 272.15 152.4 Load-Return 374.4 mm Single-Acting 526.8 157.71
RGG15013 Power Team 136.07 330.2 Load-Return 494.03 mm Single-Acting 824.23 87.23
RGG40012 Power Team 362.87 304.8 Load-Return 560.32 mm Single-Acting 865.12 311.75
RGG758 Power Team 68.03 203.2 Load-Return 341.38 mm Single-Acting 544.58 34.97

Trending Products

RGG758

RGG758

Cylinders & Jacks

RGG758
See Product Details
RGG40012

RGG40012

Cylinders & Jacks

RGG40012
See Product Details
RDG5514

RDG5514

Cylinders & Jacks

RDG5514
See Product Details
RDG15012

RDG15012

Cylinders & Jacks

RDG15012
See Product Details
