CYLINDER, HOLLOW HOLE, DOUBLE ACTING, 100 TON, 1-1/2" STROKE

Features:

  • Cylinder body, piston and gland nut “Power-tech” treated for corrosion and abrasion resistance.
  • Most models feature threaded collar, excludes the RH203 and RHA306 models.
  • All cylinders are furnished with a 9796 3/8” NPT female half coupler, except the rh120.
  • Aluminum cylinder body and piston are featured on the RHA306 cylinder.
  • Complies with ANSI/ASME B30.1 safety standards.
Where to buy
Add to quote
  • Overview
  • Specifications
  • Documentation
FOR PULLING AND TENSIONING OF CABLES, ANCHOR BOLTS, AND FORCING SCREWS.
Units:
  • Imperial
  • Metric
Specification
Imperial
Brand Power Team
Tonnage 100
Stroke 1.5
Return Type Hydraulic-Return
Retracted Height 6.5 in
Cylinder Movement Double-Acting
Extended Height 8 in
Weight 85 Ibs
Cylinder Eff. Area 9.43
Specification 12
Metric
Brand Power Team
Tonnage 90.72
Stroke 38.1
Return Type Hydraulic-Return
Retracted Height 165.1 mm
Cylinder Movement Double-Acting
Extended Height 203.2 mm
Weight 38.56 kgs
Cylinder Eff. Area 60.84

Document Image

Item part number

sort

Description

Document Type

sort

Model

Language

Repair Part Number

Document download result

cyl-100-ton-1-1-2-stroke-rh1001-102397

RH1001

CYL, 100 TON 1-1/2" STROKE

Operating Instructions

EN

Preview Asset Download Asset
cyl_100ton1_1_2_stroke_rh1001_a_cylinders_powerteam_102397

RH1001

CYL, 100 TON 1-1/2" STROKE

Operating Instructions

A

EN

Preview Asset Download Asset
cyl-100-ton-1-1-2-stroke-rh1001-101753

RH1001

CYL, 100 TON 1-1/2" STROKE

Part Sheets

EN

Preview Asset Download Asset
cyl_100ton1_1_2_stroke_rh1001_a_cylinders_powerteam_101753

RH1001

CYL, 100 TON 1-1/2" STROKE

Part Sheets

A

EN

Preview Asset Download Asset

Comparable Models

Units:
Product Brand Tonnage Stroke Return Type Retracted Height Cylinder Movement Extended Height Weight Cylinder Eff. Area
RH10010 Power Team 100 10.13 Hydraulic-Return 19.5 in Double-Acting 29.63 240 9.43
RH1508 Power Team 150 8 Hydraulic-Return 13.75 in Double-Acting 21.75 227 15.9
RH605 Power Team 60 5 Hydraulic-Return 9.5 in Double-Acting 14.5 73 5.15
RH503 Power Team 50 3 Spring-Return 7.13 in Single-Acting 10.13 46.6 10.86
RH1505 Power Team 150 5 Hydraulic-Return 12.25 in Double-Acting 17.25 148 14.7
RH120 Power Team 12 0.31 Spring-Return 2.19 in Single-Acting 2.5 3 2.76
RH306 Power Team 30 6 Spring-Return 9.75 in Single-Acting 15.75 39 6.34
RH2008 Power Team 200 8 Hydraulic-Return 16.06 in Double-Acting 24.06 311 15.95
RH1001 Power Team 100 1.5 Hydraulic-Return 6.5 in Double-Acting 8 85 9.43
RH303 Power Team 30 3 Hydraulic-Return 7.06 in Double-Acting 10.06 29.8 3.38
RH606 Power Team 60 6 Spring-Return 12.25 in Single-Acting 18.25 78 12.31
RH203 Power Team 20 3 Spring-Return 6.06 in Single-Acting 9.06 20 3.92
RH108 Power Team 10 8 Spring-Return 11.31 in Single-Acting 19.31 18.7 2.21
RH1003 Power Team 100 3 Spring-Return 10 in Single-Acting 13 115 20.62
RH102 Power Team 10 2.5 Spring-Return 5.31 in Single-Acting 7.81 9 2.21
RH202 Power Team 20 2 Spring-Return 6.13 in Single-Acting 8.13 16.1 4.72
RH206 Power Team 20 6 Spring-Return 12.13 in Single-Acting 18.13 30.2 4.72
RH121T Power Team 12 1.63 Spring-Return 4.81 in Single-Acting 6.44 6.6 2.76
RH121 Power Team 12 1.63 Spring-Return 4.81 in Single-Acting 6.44 6.6 2.76
RH3010 Power Team 30 10.13 Hydraulic-Return 17.25 in Double-Acting 27.38 61 4.04
RH123 Power Team 12 3 Spring-Return 7.25 in Single-Acting 10.25 8.9 2.76
RH603 Power Team 60 3 Spring-Return 9.25 in Single-Acting 12.25 60 12.31
RH306D Power Team 30 6 Hydraulic-Return 11.06 in Double-Acting 17.06 45 3.38
RH302 Power Team 30 2.5 Spring-Return 6.25 in Single-Acting 8.75 25.6 6.34
RHA604D Power Team 60 4 Hydraulic-Return 9.5 in Double-Acting 13.5 35.6 5.15
RH6010 Power Team 60 10.13 Hydraulic-Return 18.06 in Double-Acting 28.19 120 8.59
RH1006 Power Team 100 6 Hydraulic-Return 12.38 in Double-Acting 18.38 95 10.93
RHA306 Power Team 30 5.88 Spring-Return 11.16 in Single-Acting 17.03 21.9 6.34
WeightCompliance
Product Brand Tonnage Stroke Return Type Retracted Height Cylinder Movement Extended Height Weight Cylinder Eff. Area
RH10010 Power Team 90.72 10.13 Hydraulic-Return 495.3 mm Double-Acting 752.6 108.86 60.84
RH1508 Power Team 136.07 8 Hydraulic-Return 349.25 mm Double-Acting 552.45 102.97 102.59
RH605 Power Team 54.43 5 Hydraulic-Return 241.3 mm Double-Acting 368.3 33.11 33.23
RH503 Power Team 54.35 3 Spring-Return 181.1 mm Single-Acting 257.3 21.14 70.07
RH1505 Power Team 136.07 5 Hydraulic-Return 311.15 mm Double-Acting 438.15 67.13 94.84
RH120 Power Team 10.88 0.31 Spring-Return 55.63 mm Single-Acting 63.5 1.36 17.81
RH306 Power Team 27.22 6 Spring-Return 247.65 mm Single-Acting 400.05 17.69 40.91
RH2008 Power Team 181.43 8 Hydraulic-Return 407.92 mm Double-Acting 611.12 141.07 102.91
RH1001 Power Team 90.72 1.5 Hydraulic-Return 165.1 mm Double-Acting 203.2 38.56 60.84
RH303 Power Team 27.22 3 Hydraulic-Return 179.32 mm Double-Acting 255.52 13.52 21.81
RH606 Power Team 54.43 6 Spring-Return 311.15 mm Single-Acting 463.55 35.38 79.42
RH203 Power Team 18.14 3 Spring-Return 153.92 mm Single-Acting 230.12 9.07 25.29
RH108 Power Team 9.07 8 Spring-Return 287.27 mm Single-Acting 490.47 8.48 14.26
RH1003 Power Team 90.72 3 Spring-Return 254 mm Single-Acting 330.2 52.16 133.04
RH102 Power Team 9.07 2.5 Spring-Return 134.87 mm Single-Acting 198.37 4.08 14.26
RH202 Power Team 18.14 2 Spring-Return 155.7 mm Single-Acting 206.5 7.3 30.45
RH206 Power Team 18.14 6 Spring-Return 308.1 mm Single-Acting 460.5 13.7 30.45
RH121T Power Team 10.88 1.63 Spring-Return 122.17 mm Single-Acting 163.58 2.99 17.81
RH121 Power Team 10.88 1.63 Spring-Return 122.17 mm Single-Acting 163.58 2.99 17.81
RH3010 Power Team 27.22 10.13 Hydraulic-Return 438.15 mm Double-Acting 695.45 27.67 26.07
RH123 Power Team 10.88 3 Spring-Return 184.15 mm Single-Acting 260.35 4.04 17.81
RH603 Power Team 54.43 3 Spring-Return 234.95 mm Single-Acting 311.15 27.22 79.42
RH306D Power Team 27.22 6 Hydraulic-Return 280.92 mm Double-Acting 433.32 20.41 21.81
RH302 Power Team 27.22 2.5 Spring-Return 158.75 mm Single-Acting 222.25 11.61 40.91
RHA604D Power Team 54.43 4 Hydraulic-Return 241.3 mm Double-Acting 342.9 16.15 33.23
RH6010 Power Team 54.43 10.13 Hydraulic-Return 458.72 mm Double-Acting 716.03 54.43 55.42
RH1006 Power Team 90.72 6 Hydraulic-Return 314.45 mm Double-Acting 466.85 43.09 70.52
RHA306 Power Team 27.22 5.88 Spring-Return 283.46 mm Single-Acting 432.56 9.93 40.91

Trending Products

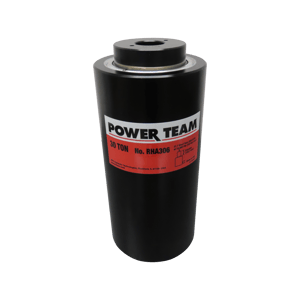

RHA306

RHA306

Cylinders & Jacks

RHA306
See Product Details
RH1006

RH1006

Cylinders & Jacks

RH1006
See Product Details

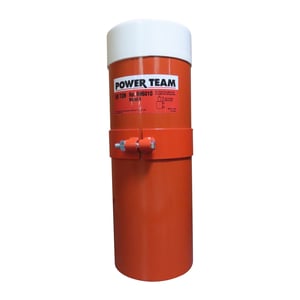

RH6010

RH6010

Cylinders & Jacks

RH6010
See Product Details

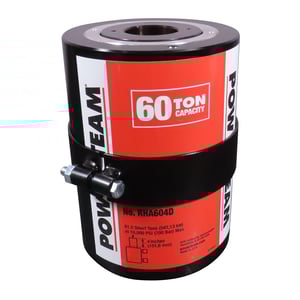

RHA604D
