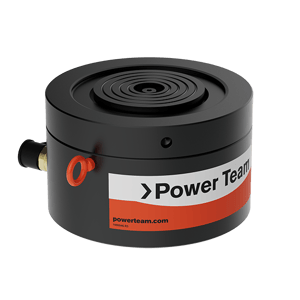

CYLINDER SINGLE ACTING, LOAD RETURN, LOCKING COLLAR PANCAKE 2IN 180T W/ SWIVEL CAP, NITRIDE

Features:

  • The mechanical locking collar safely supports loads for an extended period of time removing the chance of a hydraulic leak down causing a load shift.
  • The patented 5 degree deep swivel cap concentrated loads to minimize offset conditions.
  • Compact design is ideal for confined areas
  • Buttress thread design supports locking collar strength and security along with time saving quick run-down
  • Power-tech nitro-carburization surface treatment inhibits corrosion and provides exceptional durability
  • Weep hole provides visual indication of piston over travel
  • One high flow 3/8” NPTF female half coupler and carry
  • Eyelets are included
Where to buy
Add to quote
  • Overview
  • Specifications
  • Documentation
HEAVY LIFT, GENERAL PURPOSE CYLINDER FOR TOUGH MAINTENANCE APPLICATIONS.
Units:
  • Imperial
  • Metric
Specification
Imperial
Brand Power Team
Tonnage 180
Stroke 1.75
Return Type Load-Return
Retracted Height 5.82 in
Cylinder Movement Single-Acting
Extended Height 7.57 in
Weight 97.2
Cylinder Eff. Area 35.78
Specification 12
Metric
Brand Power Team
Tonnage 163.29
Stroke 44.45
Return Type Load-Return
Retracted Height 147.83 mm
Cylinder Movement Single-Acting
Extended Height 192.28 mm
Weight 44.09 kgs
Cylinder Eff. Area 230.85

Document Image

Item part number

sort

Description

Document Type

sort

Model

Language

Repair Part Number

Document download result

RGP1802

ASSY, PANCAKE CYL 2IN 180T LC FNC SWVL

CAD Files

EN

Download Asset

Comparable Models

Units:
Product Brand Tonnage Stroke Return Type Retracted Height Cylinder Movement Extended Height Weight Cylinder Eff. Area
RGP2802 Power Team 280 1.75 Load-Return 6.27 in Single-Acting 8.02 155.2 56.74
RGP1102 Power Team 110 1.75 Load-Return 5.21 in Single-Acting 6.96 52.3 22.69
RGP672 Power Team 67 1.75 Load-Return 4.78 in Single-Acting 6.53 33.5 13.36
RGP2202 Power Team 220 1.75 Load-Return 6.17 in Single-Acting 7.92 127.2 44.18
RGP1802 Power Team 180 1.75 Load-Return 5.82 in Single-Acting 7.57 97.2 35.78
RGP5652 Power Team 565 1.75 Load-Return 7.6 in Single-Acting 9.35 398.7 113.09
RGP4302 Power Team 430 1.75 Load-Return 7 in Single-Acting 8.75 282.5 86.59
WeightCompliance
Product Brand Tonnage Stroke Return Type Retracted Height Cylinder Movement Extended Height Weight Cylinder Eff. Area
RGP2802 Power Team 254 44.45 Load-Return 159.26 mm Single-Acting 203.71 70.4 366.09
RGP1102 Power Team 99.79 44.45 Load-Return 132.33 mm Single-Acting 176.78 23.72 146.4
RGP672 Power Team 60.78 44.45 Load-Return 121.41 mm Single-Acting 165.86 15.2 86.2
RGP2202 Power Team 199.58 44.45 Load-Return 156.72 mm Single-Acting 201.17 57.7 285.05
RGP1802 Power Team 163.29 44.45 Load-Return 147.83 mm Single-Acting 192.28 44.09 230.85
RGP5652 Power Team 512.55 44.45 Load-Return 193.04 mm Single-Acting 237.49 180.85 729.66
RGP4302 Power Team 390 44.45 Load-Return 177.8 mm Single-Acting 222.25 128.14 558.68
