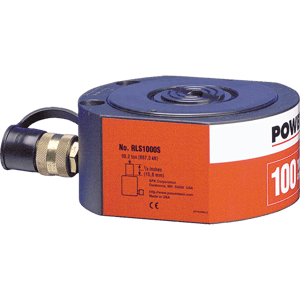

CYLINDER, LOW PROFILE, SINGLE ACTING, SPRING RETURN 100 TON, 5/8" STROKE
Features:
- Low height starting at 1.63” to 4.00”.
- Cylinder body, piston and gland nut are “Power-tech” treated for corrosion and abrasion resistance.
- Standard domed piston rod (5-30 tons) or swivel cap (50-150 tons) minimize effects of off-center loading.
- Unique heavy-duty spring
- Coupler is angled upward for extra clearance.
- Complies with ANSI/ASME B30.1 safety standards. Provides fast piston return on all cylinders, except rls50.
- Overview
- Specifications
- Documentation
IDEAL FOR LOW CLEARANCE OR TIGHT CONSTRAINT APPLICATIONS REQUIRING HIGH FORCES.
Units:
- Imperial
- Metric
Specification |
Imperial |
|---|---|
| Brand | Power Team |
| Tonnage | 100 |
| Stroke | 0.63 |
| Return Type | Spring-Return |
| Retracted Height | 3.38 in |
| Cylinder Movement | Single-Acting |
| Extended Height | 4 in |
| Weight | 30 |
| Cylinder Eff. Area | 19.64 |
Specification 12 |
Metric |
|---|---|
| Brand | Power Team |
| Tonnage | 90.72 |
| Stroke | 16 |
| Return Type | Spring-Return |
| Retracted Height | 85.85 mm |
| Cylinder Movement | Single-Acting |
| Extended Height | 101.6 mm |
| Weight | 13.61 kgs |
| Cylinder Eff. Area | 126.69 |
