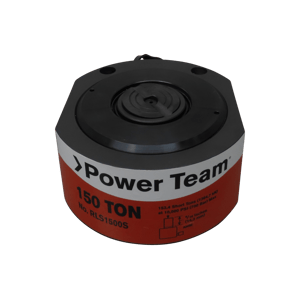

CYLINDER, LOW PROFILE, SINGLE ACTING, SPRING RETURN 150 TON, 9/16" STROKE
Features:
- Low height starting at 1.63” to 4.00”.
- Cylinder body, piston and gland nut are “Power-tech” treated for corrosion and abrasion resistance.
- Standard domed piston rod (5-30 tons) or swivel cap (50-150 tons) minimize effects of off-center loading.
- Unique heavy-duty spring
- Coupler is angled upward for extra clearance.
- Complies with ANSI/ASME B30.1 safety standards. Provides fast piston return on all cylinders, except rls50.
- Overview
- Specifications
- Documentation
IDEAL FOR LOW CLEARANCE OR TIGHT CONSTRAINT APPLICATIONS REQUIRING HIGH FORCES.
Units:
- Imperial
- Metric
Specification |
Imperial |
|---|---|
| Brand | Power Team |
| Tonnage | 150 |
| Stroke | 0.56 |
| Return Type | Spring-Return |
| Retracted Height | 4 in |
| Cylinder Movement | Single-Acting |
| Extended Height | 4.56 in |
| Weight | 52 |
| Cylinder Eff. Area | 30.68 |
Specification 12 |
Metric |
|---|---|
| Brand | Power Team |
| Tonnage | 136.07 |
| Stroke | 14.22 |
| Return Type | Spring-Return |
| Retracted Height | 101.6 mm |
| Cylinder Movement | Single-Acting |
| Extended Height | 115.82 mm |
| Weight | 23.59 kgs |
| Cylinder Eff. Area | 197.95 |
