RSS302
RSS302
RSS302

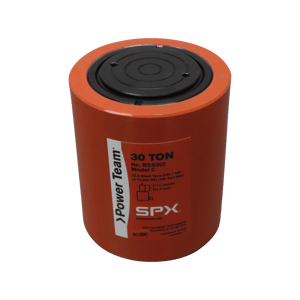

SHORTY CYLINDER, SINGLE ACTING, SPRING RETURN, 30 TON, 2-7/16" STROKE
Features:
- “Power-tech” nitro-carburization surface treatment inhibits corrosion and provides exceptional durability for the rod and piston.
- Heavy-duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
- Coupler on 10-50 ton models is angled upward 5° for added clearance.
- Grooved piston top keeps load from sliding.
- Cylinders can be “Dead-ended” at full capacity.
- Removable carrying handles on 100 and 250 ton models.
- Complies with ANSI/ASME B30.1 safety standards.
- Overview
- Specifications
- Documentation
IDEAL FOR CONFINED AREAS WITH 3 1/2” TO 11 7/16” CLEARANCE.
Units:
- Imperial
- Metric
Specification |
Imperial |
|---|---|
| Brand | Power Team |
| Tonnage | 30 |
| Stroke | 2.44 |
| Return Type | Spring-Return |
| Retracted Height | 4.63 in |
| Cylinder Movement | Single-Acting |
| Extended Height | 7.06 in |
| Weight | 14.7 |
| Cylinder Eff. Area | 6.49 |
Specification 12 |
Metric |
|---|---|
| Brand | Power Team |
| Tonnage | 27.22 |
| Stroke | 61.98 |
| Return Type | Spring-Return |
| Retracted Height | 117.6 mm |
| Cylinder Movement | Single-Acting |
| Extended Height | 179.32 mm |
| Weight | 6.67 kgs |
| Cylinder Eff. Area | 41.87 |
