P12
P12
P12

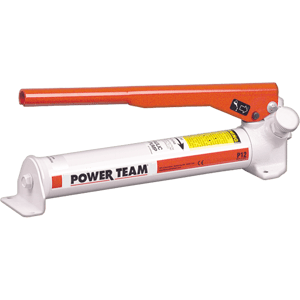

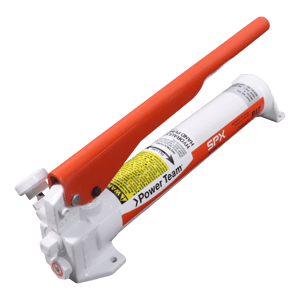

PUMP, HAND 1-STAGE, 0.069 CU IN/STROKE
Features:
- Formed metal handle provides rigidity, and reduces operator fatigue with grip.
- Convenient fill port enables pumps to be filled in a horizontal or vertical position, excluding p12.
- Fill cap seal acts as safety valve preventing over-pressurizing of reservoir.
- Large valve knob gives added control for slowly metering loads down.
- Overview
- Specifications
- Documentation
STEEL HAND PUMPS BEST SUITED FOR MRO APPLICATIONS.
Units:
- Imperial
- Metric
Specification |
Imperial |
|---|---|
| Brand | Power Team |
| Max Flow | 9 in3/min |
| Pump Type | Manual |
| Reservoir Capacity | 0.05 gal |
| Oper. Pressure | 10000 psi |
| Cylinder Compatibility | Single-Acting |
| Valve Operation | |
| Valve Type | |
| Weight | 5.7 Ibs |
| Compliance |
Specification 12 |
Metric |
|---|---|
| Brand | Power Team |
| Max Flow | 0.14 L/min |
| Pump Type | Manual |
| Reservoir Capacity | 0.19 L |
| Oper. Pressure | 689 bar |
| Cylinder Compatibility | Single-Acting |
| Valve Operation | |
| Valve Type | |
| Weight | 2.6 kgs |
| Compliance |
