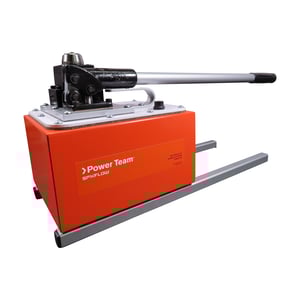

HAND PUMP, 2-SPEED, .294-7.35 CU IN/STROKE
Features:
- Rugged all metal construction for strength and durability that won't burn through in welding environments.
- Heavy-duty, formed metal handle provides rigidity, and reduces operator fatigue with grip.
- Convenient oil fill ports.
- Fill cap seal acts as safety valve to prevent over-pressurizing of reservoir.
- Relief valve inboard of check valve prevents loads from drifting down.
- Large valve knob gives added control for slowly metering loads down.
- Overview
- Specifications
- Documentation
HEAVY-DUTY STEEL HAND PUMPS HOLD UP TO THE MOST DEMANDING APPLICATIONS.
Units:
- Imperial
- Metric
Specification |
Imperial |
|---|---|
| Brand | Power Team |
| Max Flow | 460 in3/min |
| Pump Type | Manual |
| Reservoir Capacity | 2.5 gal |
| Oper. Pressure | 10000 psi |
| Cylinder Compatibility | Double-acting |
| Valve Operation | |
| Valve Type | |
| Weight | 57.9 Ibs |
| Compliance |
Specification 12 |
Metric |
|---|---|
| Brand | Power Team |
| Max Flow | 7.53 L/min |
| Pump Type | Manual |
| Reservoir Capacity | 9.46 L |
| Oper. Pressure | 689 bar |
| Cylinder Compatibility | Double-Acting |
| Valve Operation | |
| Valve Type | |
| Weight | 26.3 kgs |
| Compliance |
