PE172SM

PE172SM

PE172SM
PE172SM

PE172SM

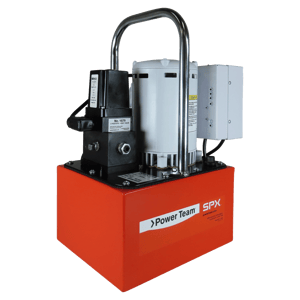

PUMP,E 17 CU IN/MIN, 110/115V, 50/60HZ

Features:

  • For use with single or double-acting cylinders at operating pressure up to 10,000 psi.
  • Equipped with 1/2 HP, 3,450 RPM, single-phase, thermal protected induction motor; 10 ft. Remote control cord (PE172S has 25 ft. Cord)
  • Low amperage draw; small generators and low amperage circuits can be use as power source.
  • Extremely quiet noise level (67-81 dBA).
  • Starts under full load for intermittent duty
Where to buy
Add to quote
  • Overview
  • Specifications
  • Documentation
FOR MAINTENANCE AND CONSTRUCTION APPLICATIONS.
Units:
  • Imperial
  • Metric
Specification
Imperial
Brand Power Team
Max Flow 16 in3/min
Pump Voltage 115 VAC
Reservoir Capacity 1.62 gal
Oper. Pressure 10000 psi
Cylinder Compatibility Single-Acting
Valve Operation Solenoid Operated
Valve Type 3W2P
Weight 53 Ibs
Compliance
Specification 12
Metric
Brand Power Team
Max Flow 0.26 L/min
Pump Voltage 115 VAC
Reservoir Capacity 6.13 L
Oper. Pressure 689 bar
Cylinder Compatibility Single-Acting
Valve Operation Solenoid Operated
Valve Type 3W2P
Weight 24.1 kgs
Compliance

Document Image

Item part number

sort

Description

Document Type

sort

Model

Language

Repair Part Number

Document download result

pump-elec-110-115v-50-60hz-pe172sm-102503

PE172SM

PUMP, ELEC 110/115V 50/60HZ

Operating Instructions

A

EN

Preview Asset Download Asset
pump-elec-110-115v-50-60hz-pe172sm-101717

PE172SM

PUMP, ELEC 110/115V 50/60HZ

Part Sheets

EN

Preview Asset Download Asset
pump_elec110_115v50_60hz_pe172sm_a_pumps_powerteam_101717

PE172SM

PUMP, ELEC 110/115V 50/60HZ

Part Sheets

A

EN

Preview Asset Download Asset

Comparable Models

Units:
Product Brand Flow Voltage Reservoir Capacity (in3) Oper. Pressure Cylinder Compatibility Valve Operation Valve Type: Weight Compliance
PE172 Power Team 16In3 115 VAC 1.28 in3/min 10000 Psi Single-Acting Manually Operated 2W2P 45 -
PE172A-E110 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated - 45 -
PE174M-E110 Power Team 16In3 115 VAC 1.62 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 53 -
PE174-50-220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 45 -
PE172M Power Team 16In3 115 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated 2W2P 53 -
PE172S-50-220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 45 -
PE174S-E220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Double-acting Solenoid Operated 3W2P 45 -
PE174M-E220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 53 -
PE172A-E220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated - 45 -
PE174 Power Team 16In3 115 VAC 1.28 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 45 -
PE172M-50-220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated 2W2P 53 -
PE172-E110 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated 2W2P 45 -
PE172SM-E220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 53 -
PE174M Power Team 16In3 115 VAC 1.62 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 53 -
PE172AM Power Team 16In3 115 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated - 53 -
PE172A Power Team 16In3 115 VAC 1.28 in3/min 10000 Psi Single-Acting Manually Operated - 45 -
PE172-E220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated 2W2P 45 -
PE174M-50-220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 53 -
PE174SM-E220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Double-acting Solenoid Operated 3W2P 53 -
PE172-50-220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated 2W2P 45 -
PE172S-E220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 45 -
PE172SM-50-220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 53 -
PE172M-E110 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated 2W2P 53 -
PE174-E220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 45 -
PE174-E110 Power Team 16In3 115 VAC 1.62 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 45 -
PE172SM Power Team 16In3 115 VAC 1.62 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 53 -
PE172S Power Team 16In3 115 VAC 1.28 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 45 -
PE172M-E220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated 2W2P 53 -
PE172SM-E110 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 53 -
PE172A-50-220 Power Team 16In3 230 VAC 1.62 in3/min 10000 Psi Single-Acting Manually Operated - 45 -
WeightCompliance
Product Brand Flow Voltage Reservoir Capacity (in3) Oper. Pressure Cylinder Compatibility Valve Operation Valve Type: Weight Compliance
PE172 Power Team 0.26l 115 VAC 4.84l 689bar Single-Acting Manually Operated 2W2P 20.5 -
PE172A-E110 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Manually Operated - 20.5 -
PE174M-E110 Power Team 0.26l 115 VAC 6.13l 689bar Double-Acting Manually Operated 4W3P Tandem Center 24.1 -
PE174-50-220 Power Team 0.26l 230 VAC 6.13l 689bar Double-Acting Manually Operated 4W3P Tandem Center 20.5 -
PE172M Power Team 0.26l 115 VAC 6.13l 689bar Single-Acting Manually Operated 2W2P 24.1 -
PE172S-50-220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Solenoid Operated 3W2P 20.5 -
PE174S-E220 Power Team 0.26l 230 VAC 6.13l 689bar Double-Acting Solenoid Operated 3W2P 20.5 -
PE174M-E220 Power Team 0.26l 230 VAC 6.13l 689bar Double-Acting Manually Operated 4W3P Tandem Center 24.1 -
PE172A-E220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Manually Operated - 20.5 -
PE174 Power Team 0.26l 115 VAC 4.84l 689bar Double-Acting Manually Operated 4W3P Tandem Center 20.5 -
PE172M-50-220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Manually Operated 2W2P 24.1 -
PE172-E110 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Manually Operated 2W2P 20.5 -
PE172SM-E220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Solenoid Operated 3W2P 24.1 -
PE174M Power Team 0.26l 115 VAC 6.13l 689bar Double-Acting Manually Operated 4W3P Tandem Center 24.1 -
PE172AM Power Team 0.26l 115 VAC 6.13l 689bar Single-Acting Manually Operated - 24.1 -
PE172A Power Team 0.26l 115 VAC 4.84l 689bar Single-Acting Manually Operated - 20.5 -
PE172-E220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Manually Operated 2W2P 20.5 -
PE174M-50-220 Power Team 0.26l 230 VAC 6.13l 689bar Double-Acting Manually Operated 4W3P Tandem Center 24.1 -
PE174SM-E220 Power Team 0.26l 230 VAC 6.13l 689bar Double-Acting Solenoid Operated 3W2P 24.1 -
PE172-50-220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Manually Operated 2W2P 20.5 -
PE172S-E220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Solenoid Operated 3W2P 20.5 -
PE172SM-50-220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Solenoid Operated 3W2P 24.1 -
PE172M-E110 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Manually Operated 2W2P 24.1 -
PE174-E220 Power Team 0.26l 230 VAC 6.13l 689bar Double-Acting Manually Operated 4W3P Tandem Center 20.5 -
PE174-E110 Power Team 0.26l 115 VAC 6.13l 689bar Double-Acting Manually Operated 4W3P Tandem Center 20.5 -
PE172SM Power Team 0.26l 115 VAC 6.13l 689bar Single-Acting Solenoid Operated 3W2P 24.1 -
PE172S Power Team 0.26l 115 VAC 4.84l 689bar Single-Acting Solenoid Operated 3W2P 20.5 -
PE172M-E220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Manually Operated 2W2P 24.1 -
PE172SM-E110 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Solenoid Operated 3W2P 24.1 -
PE172A-50-220 Power Team 0.26l 230 VAC 6.13l 689bar Single-Acting Manually Operated - 20.5 -
