PQ1204
PQ1204
PQ1204

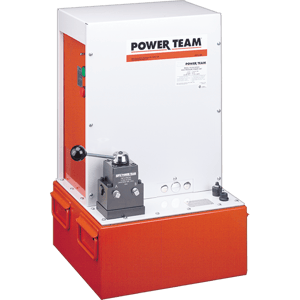

PUMP,E 120 CU IN/MIN, 460V, 60HZ, D
Features:
- Start and operate under full load, even with voltage reduced by 10%.
- Electrical shut-down feature prevents unintentional restarting of motor following an electrical service interruption.
- Internal relief valve limits pressure to 10,000 psi.
- External relief valve is adjustable from 1,000 to 10,000 psi.
- Pump pre-wired at factory with a 3 HP, 460VAC, 60 HZ, three-phase motor. Other electrical configurations are available. See ordering information on the following page.
- 24VAC control circuit on units with remote control for added user/operator safety.
- Thermal overload protection, motor starter and heater element supplied as standard equipment.
- Metal shroud keeps dirt and moisture out of motor and electrical components.
- Pumps operate below osha noise limitation (74-76 dBA).
- CSA rated for intermittent duty.
- Overview
- Specifications
- Documentation
PUMP DESIGNED SPECIFICALLY FOR HEAVYDUTY, EXTENDED CYCLE OPERATION.
Units:
- Imperial
- Metric
Specification |
Imperial |
|---|---|
| Brand | Power Team |
| Max Flow | 120 in3/min |
| Pump Voltage | 230 VAC |
| Reservoir Capacity | 5.41 gal |
| Oper. Pressure | 10000 psi |
| Cylinder Compatibility | Double-acting |
| Valve Operation | Manually Operated |
| Valve Type | 4W3P Tandem Center |
| Weight | 164 Ibs |
| Compliance |
Specification 12 |
Metric |
|---|---|
| Brand | Power Team |
| Max Flow | 1.96 L/min |
| Pump Voltage | 230 VAC |
| Reservoir Capacity | 20.48 L |
| Oper. Pressure | 689 bar |
| Cylinder Compatibility | Double-Acting |
| Valve Operation | Manually Operated |
| Valve Type | 4W3P Tandem Center |
| Weight | 74.5 kgs |
| Compliance |
