PE102-220
PE102-220
PE102-220

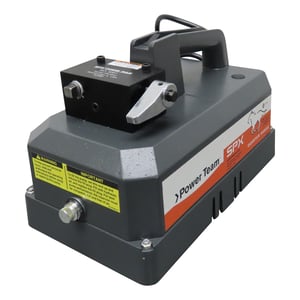

PUMP,E 2-SPEED, 220/230V, 50/60H
Features:
- Portable power source for hydraulic cylinders and tools.
- Permanent magnet motor starts easily under load, even with reduced voltage conditions.
- Battery-operated models have 8 foot power cord with alligator clips to connect to any 12VDC battery.
- Optional rechargeable battery pack with shoulder strap for maximum portability.
- Pump typically delivers 15 minutes of continuous operation at 10,000 psi on a single battery.
- Pump can be operated in any position.
- 24VDC hand and foot switches available for all AC powered models.
- High-impact housing with flame–retardant construction.
- Base mounting holes for fixed installations.
- CSA rated for intermittent duty.
- Overview
- Specifications
- Documentation
HIGH-PERFORMANCE IN A COMPACT PACKAGE. ELECTRIC AND BATTERY POWERED MODELS FOR POWERING TOOLS AND CYLINDERS UP TO 25 TON.
Units:
- Imperial
- Metric
Specification |
Imperial |
|---|---|
| Brand | Power Team |
| Max Flow | 10 in3/min |
| Pump Voltage | 230 VAC |
| Reservoir Capacity | 0.26 gal |
| Oper. Pressure | 10000 psi |
| Cylinder Compatibility | Single-Acting |
| Valve Operation | Manually Operated |
| Valve Type | 2W2P |
| Weight | 20 Ibs |
| Compliance |
Specification 12 |
Metric |
|---|---|
| Brand | Power Team |
| Max Flow | 0.16 L/min |
| Pump Voltage | 230 VAC |
| Reservoir Capacity | 0.98 L |
| Oper. Pressure | 689 bar |
| Cylinder Compatibility | Single-Acting |
| Valve Operation | Manually Operated |
| Valve Type | 2W2P |
| Weight | 9.1 kgs |
| Compliance |
