PE464S-50-220
PE464S-50-220
PE464S-50-220

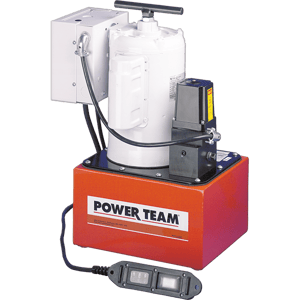

PUMP, ELECTRIC 3/4 WAY, 220VAC 50HZ, DBL/MULTI
Features:
- Two-speed high-performance pump.
- For use with single or double-acting cylinders at operating pressures up to 10,000 psi.
- Equipped with a 1-1⁄2 HP, 3,450 RPM single-phase, 60hz thermal protected induction motor that starts under full load. Noise level of 77-81 dBA.
- All equipped with a 10 foot remote control except PE462S which has a 25 foot remote control.
- 24VAC control circuit on all units with remote control.
- Overview
- Specifications
- Documentation
BEST SUITED FOR UNDER-THE-ROOF MAINTENANCE AND PRODUCTION APPLICATIONS
Units:
- Imperial
- Metric
Specification |
Imperial |
|---|---|
| Brand | Power Team |
| Max Flow | 46 in3/min |
| Pump Voltage | 230 VAC |
| Reservoir Capacity | 2.55 gal |
| Oper. Pressure | 10000 psi |
| Cylinder Compatibility | Double-acting |
| Valve Operation | Solenoid Operated |
| Valve Type | 3/4W2P |
| Weight | 79 Ibs |
| Compliance |
Specification 12 |
Metric |
|---|---|
| Brand | Power Team |
| Max Flow | 0.75 L/min |
| Pump Voltage | 230 VAC |
| Reservoir Capacity | 9.65 L |
| Oper. Pressure | 689 bar |
| Cylinder Compatibility | Double-Acting |
| Valve Operation | Solenoid Operated |
| Valve Type | 3/4W2P |
| Weight | 35.9 kgs |
| Compliance |
