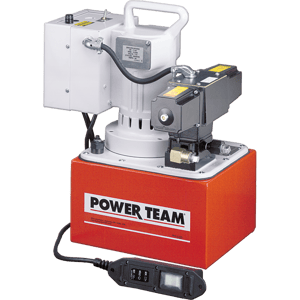

PE554S-E220

PE554S-E220

PE554S-E220
PE554S-E220

PE554S-E220

PUMP, ELECTRIC 220VAC 50HZ

Features:

  • 1-1/8 HP, 12,000 RPM, 110/115VAC, 50/60 HZ universal motor. Draws 25 amps at full load, starts at reduced voltage.
  • True unloading valve achieves greater pump efficiency, allowing higher flow at maximum pressure.
  • Reservoirs available in sizes up to 10 gallons, refer to pump accessories page.
  • Lightweight and portable. Best performance-to-weight ratio of all Power Team pumps.
  • 10 Foot remote motor control (except PE552S which has a 25 foot remote motor and valve control).
Where to buy
Add to quote
  • Overview
  • Specifications
  • Documentation
INDUSTRY LEADING HEAVY-DUTY PUMP FOR MULTIPLE APPLICATIONS
Units:
  • Imperial
  • Metric
Specification
Imperial
Brand Power Team
Max Flow 56 in3/min
Pump Voltage 230 VAC
Reservoir Capacity 2.27 gal
Oper. Pressure 10000 psi
Cylinder Compatibility Double-acting
Valve Operation Solenoid Operated
Valve Type 3/4W2P
Weight 65 Ibs
Compliance
Specification 12
Metric
Brand Power Team
Max Flow 0.91 L/min
Pump Voltage 230 VAC
Reservoir Capacity 8.59 L
Oper. Pressure 689 bar
Cylinder Compatibility Double-Acting
Valve Operation Solenoid Operated
Valve Type 3/4W2P
Weight 29.5 kgs
Compliance

Document Image

Item part number

sort

Description

Document Type

sort

Model

Language

Repair Part Number

Document download result

pump-elec-220v-50hz-pe554s-e220-102875

PE554S-E220

PUMP, ELEC 220V 50HZ

Operating Instructions

EN

Preview Asset Download Asset
pump_elec220v50hz_pe554s_e220_b_pumps_powerteam_102875

PE554S-E220

PUMP, ELEC 220V 50HZ

Operating Instructions

B

EN

Preview Asset Download Asset
pump_elec220v50hz_pe554s_e220_c_pumps_powerteam_102875

PE554S-E220

PUMP, ELEC 220V 50HZ

Operating Instructions

C

EN

Preview Asset Download Asset
pump-elec-220v-50hz-pe554s-e220-101637

PE554S-E220

PUMP, ELEC 220V 50HZ

Part Sheets

B

EN

Preview Asset Download Asset
pump_elec220v50hz_pe554s_e220_c_pumps_powerteam_108066

PE554S-E220

PUMP, ELEC 220V 50HZ

Part Sheets

C

EN

Preview Asset Download Asset

Comparable Models

Units:
Product Brand Flow Voltage Reservoir Capacity (in3) Oper. Pressure Cylinder Compatibility Valve Operation Valve Type: Weight Compliance
PE552S-RP50 Power Team 56In3 115 VAC 4.98 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 65 -
PE554T-E110 Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE554S-E110 Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Solenoid Operated 3/4W2P 65 -
PE554PT Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated Post Tension 65 -
PE554-RP50 Power Team 56In3 115 VAC 4.98 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE552S-E220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 65 -
PE554S-50-220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Double-acting Solenoid Operated 3/4W2P 65 -
PE550-RP50 Power Team 56In3 115 VAC 4.98 in3/min 10000 Psi Single-Acting Manually Operated - 65 -
PE553-RP50 Power Team 56In3 115 VAC 4.98 in3/min 10000 Psi Single-Acting Manually Operated 3W3P Tandem Center 65 -
PE552A-E220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated 3W2P 65 -
PE552 Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated 3W2P 65 -
PE554S Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Solenoid Operated 3/4W2P 65 -
PE554T Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE554-E220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE550-E220 Power Team 56In3 230 VAC 4.98 in3/min 10000 Psi Single-Acting Manually Operated - 65 -
PE550-220 Power Team 56In3 230 VAC 4.98 in3/min 10000 Psi Single-Acting Manually Operated - 65 -
PE552S-50-220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 65 -
PE553-E220 Power Team 56In3 230 VAC 4.98 in3/min 10000 Psi Single-Acting Manually Operated 3W3P Tandem Center 65 -
PE554-50-220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE554T-E220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE554W Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE554P Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE553 Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated 3W3P Tandem Center 65 -
PE553-50-220 Power Team 56In3 230 VAC 4.98 in3/min 10000 Psi Single-Acting Manually Operated 3W3P Tandem Center 65 -
PE554PT-E220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated Post Tension 65 -
PE552S Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Single-Acting Solenoid Operated 3W2P 65 -
PE554-E110 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE552-E110 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated 3W2P 65 -
PE550 Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated - 65 -
PE552-E220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated 3W2P 65 -
PE554T-50-220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE552F Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated 3W2P 65 -
PE554 Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE552A Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated 3W2P 65 -
PE554W-RP50 Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Tandem Center 65 -
PE554S-RP50 Power Team 56In3 115 VAC 4.98 in3/min 10000 Psi Double-acting Solenoid Operated 3/4W2P 65 -
PE554S-E220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Double-acting Solenoid Operated 3/4W2P 65 -
PE554PT-50-220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated Post Tension 65 -
PE554C Power Team 56In3 115 VAC 2.27 in3/min 10000 Psi Double-acting Manually Operated 4W3P Open Center 65 -
PE552A-50-220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated 3W2P 65 -
PE552-50-220 Power Team 56In3 230 VAC 2.27 in3/min 10000 Psi Single-Acting Manually Operated 3W2P 65 -
WeightCompliance
Product Brand Flow Voltage Reservoir Capacity (in3) Oper. Pressure Cylinder Compatibility Valve Operation Valve Type: Weight Compliance
PE552S-RP50 Power Team 0.91l 115 VAC 18.85l 689bar Single-Acting Solenoid Operated 3W2P 29.5 -
PE554T-E110 Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE554S-E110 Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Solenoid Operated 3/4W2P 29.5 -
PE554PT Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Manually Operated Post Tension 29.5 -
PE554-RP50 Power Team 0.91l 115 VAC 18.85l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE552S-E220 Power Team 0.91l 230 VAC 8.59l 689bar Single-Acting Solenoid Operated 3W2P 29.5 -
PE554S-50-220 Power Team 0.91l 230 VAC 8.59l 689bar Double-Acting Solenoid Operated 3/4W2P 29.5 -
PE550-RP50 Power Team 0.91l 115 VAC 18.85l 689bar Single-Acting Manually Operated - 29.5 -
PE553-RP50 Power Team 0.91l 115 VAC 18.85l 689bar Single-Acting Manually Operated 3W3P Tandem Center 29.5 -
PE552A-E220 Power Team 0.91l 230 VAC 8.59l 689bar Single-Acting Manually Operated 3W2P 29.5 -
PE552 Power Team 0.91l 115 VAC 8.59l 689bar Single-Acting Manually Operated 3W2P 29.5 -
PE554S Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Solenoid Operated 3/4W2P 29.5 -
PE554T Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE554-E220 Power Team 0.91l 230 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE550-E220 Power Team 0.91l 230 VAC 18.85l 689bar Single-Acting Manually Operated - 29.5 -
PE550-220 Power Team 0.91l 230 VAC 18.85l 689bar Single-Acting Manually Operated - 29.5 -
PE552S-50-220 Power Team 0.91l 230 VAC 8.59l 689bar Single-Acting Solenoid Operated 3W2P 29.5 -
PE553-E220 Power Team 0.91l 230 VAC 18.85l 689bar Single-Acting Manually Operated 3W3P Tandem Center 29.5 -
PE554-50-220 Power Team 0.91l 230 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE554T-E220 Power Team 0.91l 230 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE554W Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE554P Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE553 Power Team 0.91l 115 VAC 8.59l 689bar Single-Acting Manually Operated 3W3P Tandem Center 29.5 -
PE553-50-220 Power Team 0.91l 230 VAC 18.85l 689bar Single-Acting Manually Operated 3W3P Tandem Center 29.5 -
PE554PT-E220 Power Team 0.91l 230 VAC 8.59l 689bar Double-Acting Manually Operated Post Tension 29.5 -
PE552S Power Team 0.91l 115 VAC 8.59l 689bar Single-Acting Solenoid Operated 3W2P 29.5 -
PE554-E110 Power Team 0.91l 230 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE552-E110 Power Team 0.91l 230 VAC 8.59l 689bar Single-Acting Manually Operated 3W2P 29.5 -
PE550 Power Team 0.91l 115 VAC 8.59l 689bar Single-Acting Manually Operated - 29.5 -
PE552-E220 Power Team 0.91l 230 VAC 8.59l 689bar Single-Acting Manually Operated 3W2P 29.5 -
PE554T-50-220 Power Team 0.91l 230 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE552F Power Team 0.91l 115 VAC 8.59l 689bar Single-Acting Manually Operated 3W2P 29.5 -
PE554 Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE552A Power Team 0.91l 115 VAC 8.59l 689bar Single-Acting Manually Operated 3W2P 29.5 -
PE554W-RP50 Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Tandem Center 29.5 -
PE554S-RP50 Power Team 0.91l 115 VAC 18.85l 689bar Double-Acting Solenoid Operated 3/4W2P 29.5 -
PE554S-E220 Power Team 0.91l 230 VAC 8.59l 689bar Double-Acting Solenoid Operated 3/4W2P 29.5 -
PE554PT-50-220 Power Team 0.91l 230 VAC 8.59l 689bar Double-Acting Manually Operated Post Tension 29.5 -
PE554C Power Team 0.91l 115 VAC 8.59l 689bar Double-Acting Manually Operated 4W3P Open Center 29.5 -
PE552A-50-220 Power Team 0.91l 230 VAC 8.59l 689bar Single-Acting Manually Operated 3W2P 29.5 -
PE552-50-220 Power Team 0.91l 230 VAC 8.59l 689bar Single-Acting Manually Operated 3W2P 29.5 -
