Workholding Fixturing Solution for Machining Centers Powered by Hydraulic Technologies

See Our Result
Home Case Stories Manufacturing Workholding Fixturing Solution for Machining Centers Powered by Hydraulic Technologies
Document Navigation
Project Details
Industry: Manufacturing
Brand: Power Team

Overview

 Machining centers require stable and repeatable workholding to maintain part accuracy and minimize scrap. A custom hydraulic fixturing solution was implemented to securely hold raw material during machining operations, supporting consistent production quality.

The Challenge

A customer required a custom fixture for a machining center to securely hold raw material during machining operations. Inadequate workholding could lead to part movement, dimensional issues, and increased scrap.
Maintaining consistent clamping force throughout the machining cycle was critical. The challenge was to design a fixturing solution that could reliably secure material while accommodating machining forces and process variation.

Solution Presented

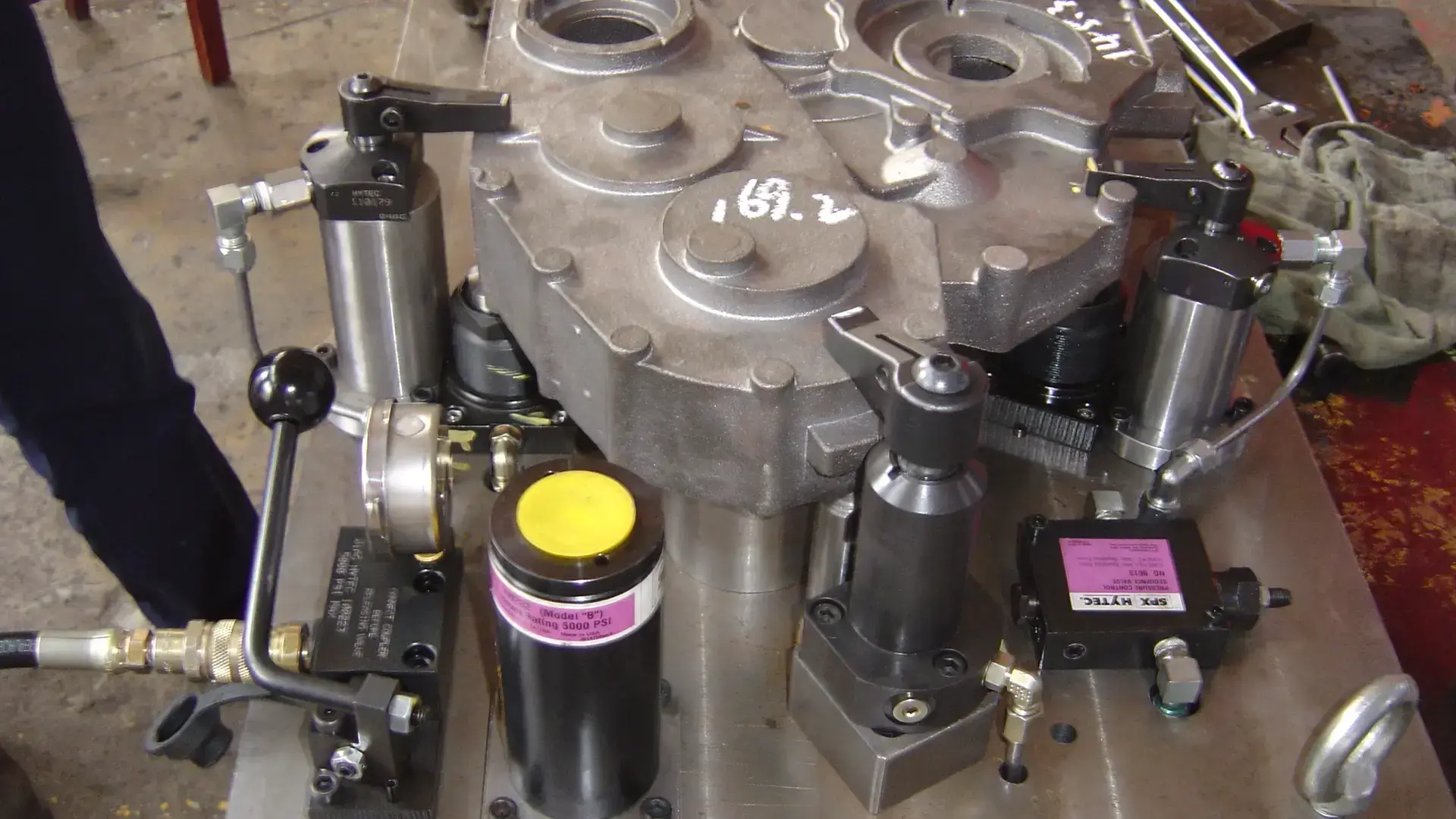

A hydraulic workholding fixturing solution was configured using a Hytec Workholding 100222 accumulator and a 100839 die clamp. The accumulator maintained consistent hydraulic pressure, while the die clamp securely held the raw material in place during machining.
This type of machining challenge is solved using hydraulic workholding systems that deliver consistent clamping force and repeatable part positioning.

Results

The custom fixturing solution provided stable and repeatable workholding throughout the machining process. The improved clamping reliability helped reduce scrap rates and supported consistent machining quality.

Based on typical CNC machining and hydraulic workholding applications, the fixturing solution delivered measurable operational benefits:
• Scrap Reduction: Improved part stability typically reduces scrap rates by approximately 10–25% by preventing movement during machining.
• Setup and Rework Time Reduction: Consistent hydraulic clamping can reduce setup adjustments and rework by an estimated 15–30%.
• Labor Efficiency: Reduced need for operator intervention during machining cycles improves labor efficiency and machine uptime.
• Quality Consistency: Repeatable clamping force improves dimensional consistency across production runs, reducing inspection failures.

Other Applications

• Machining centers and CNC equipment
• Custom fixturing for raw material processing
• Precision machining operations
• High-volume manufacturing environments

Key Metrics

System Impact & Engineering Advancements

Performance Metrics & Key Achievements

25% 1

Lower Scrap Rate

30% 2

Less Setup & Rework

Improved Labor Efficiency

Improved Quality Consistency

Ready to Get Started?

Connect with our team and find the right hydraulic solution for your application.

Contact Our Team

1. Estimated versus standard, non-hydraulic fixturing methods for comparable CNC machining applications; not a measured result.
2. Estimated from consistent hydraulic clamping versus standard fixturing methods on comparable jobs; not a measured result.
