Plant Maintenance Using a Power Team’s Hydraulic Lifting Manifold System
Synchronized Hydraulic Lifting System for RGV Applications
Document Navigation
Overview
Rail Guided Vehicle (RGV) applications require precise, synchronized lifting to meet strict safety and efficiency requirements. High tonnage hydraulic lifting systems with PLC control enable controlled pressure and movement for heavy industrial transport and handling.
The Challenge
This heavy casting/foundry customer required to move a 1,200ton casting along a foundry production line. The plant produces 60,000 tons of castings for wind energy market.
To meet both safety and efficiency requirements, the customer required a high tonnage synchronized lifting system for a specially designed RGV to move this heavy cast with an uneven bottom.
RGV lifting applications demand synchronized movement across multiple lift points with each point being within +/-5mm of tolerance across the 12 lifting points on to separate RGVs. Without accurate monitoring and control, uneven lifting can compromise safety, equipment alignment, and operational efficiency.
In addition, the customer required the solution to be repeatable without any failures. Any stoppage of the RGV would lead to lengthy downtimes and cause heavy losses.
Solution Presented

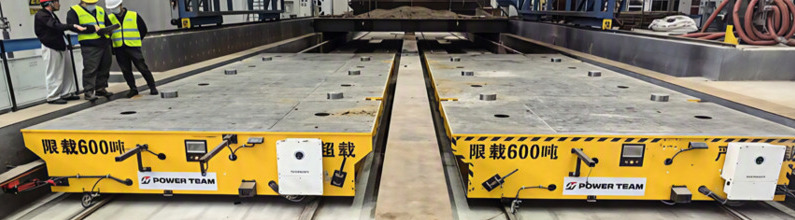

Hydraulic Technologies supplied a Power Team 12-point 200-ton synchronized lifting system equipped with a positive displacement pump station. A PLC monitoring and control system was integrated to manage system pressure and lifting movement, supporting safe and efficient RGV operation.
Results
The synchronized hydraulic lifting solution delivered controlled, balanced lifting for the RGV application, improving operational safety, movement accuracy, and overall efficiency during heavy load handling.
The customer was extremely pleased with the reliable, robust and repeatable solution for their foundry.
The alternative solution to this was using a manual crane and hoist which would take over 9 hours of operations vs. minutes along with safety and ergonomic gains.
Other Applications
- Synchronized hydraulic lifting systems are suitable for RGV platforms
- Heavy load transport systems
- Industrial maintenance
- Large component positioning
- Applications requiring precise multi-point lifting
Key Metrics
System Impact & Engineering Advancements
Performance Metrics & Key Achievements
1,200
Ton Lift Capacity
Working Time Saved 50%
+/1mm Accuracy
Balanced Load Handling
